The 2026 Ford F-550 XLT 4x4 Crew Cab Diesel Mechanics Truck with a Stellar 11’ Aluminum Crane Body is built for tough jobsites. Equipped with a 6.7L Powerstroke Diesel, Remote Start, Rear View Camera, Cloth 40/20/40 Seat, Payload Plus Upgrade Package 1, Stellar EC5000 Crane, VMAC DTM Compressor, and 13-drawer storage system, it’s lightweight, rust-resistant, and jobsite ready.

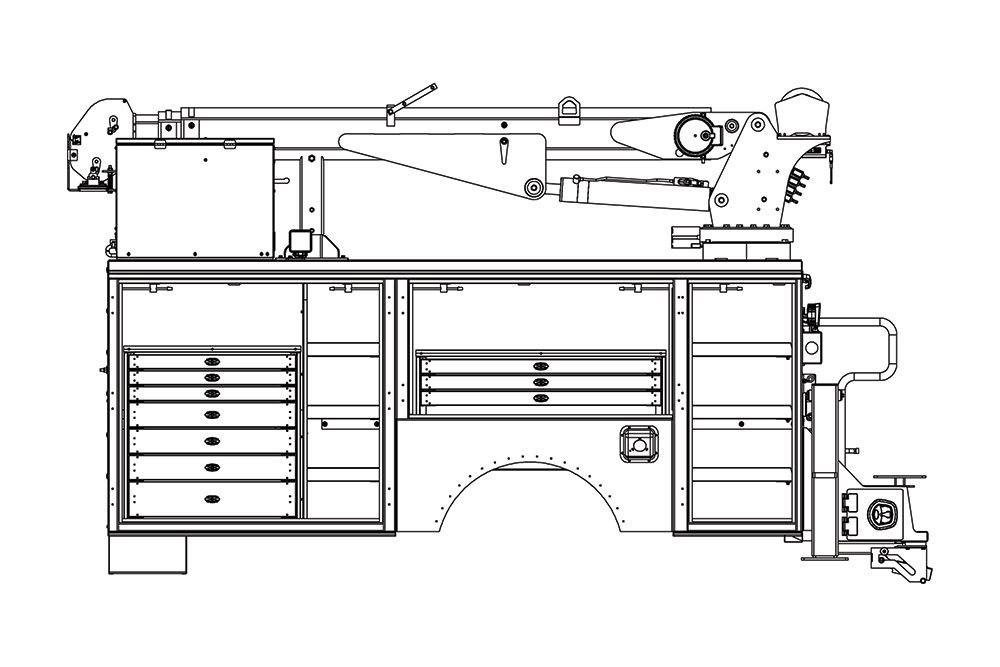

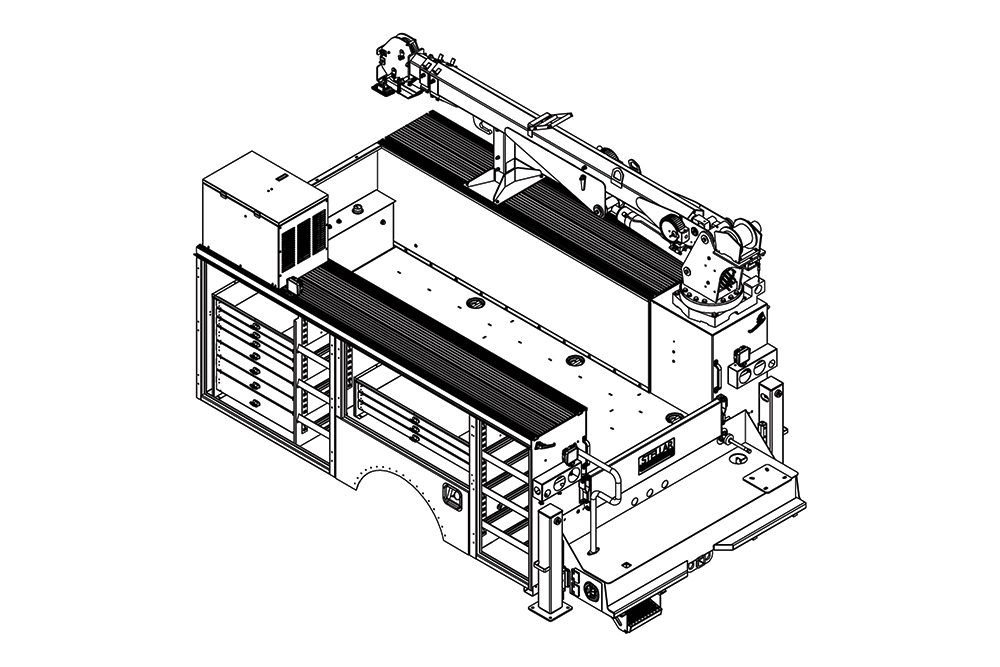

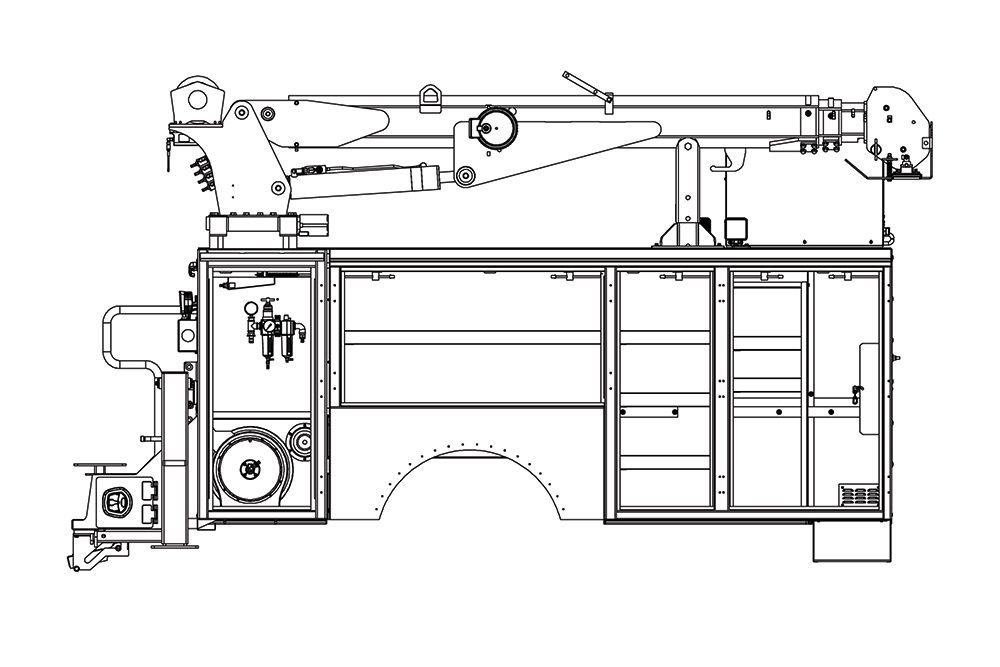

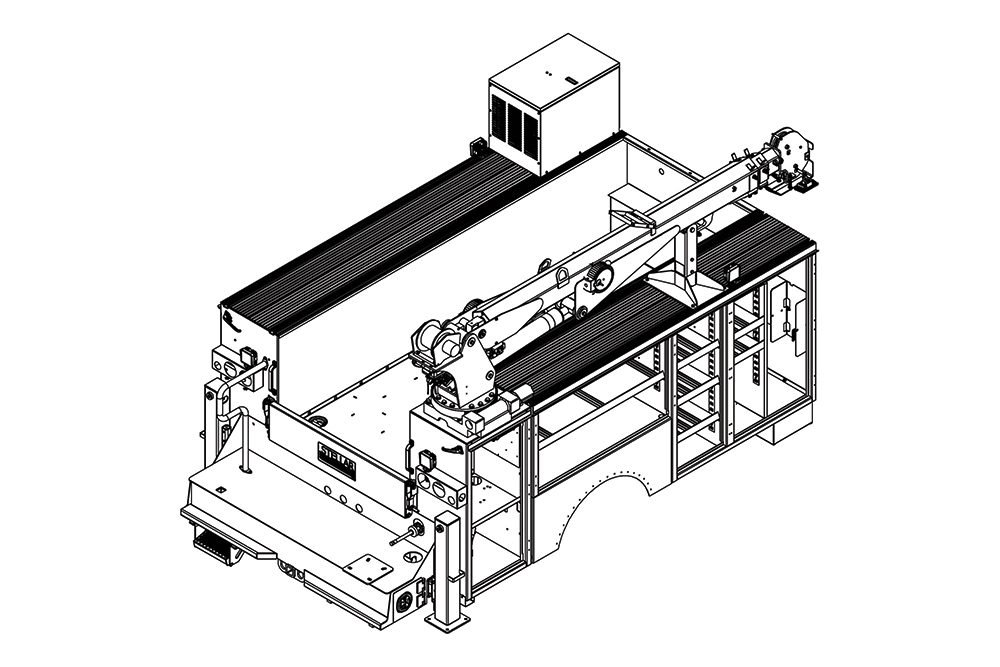

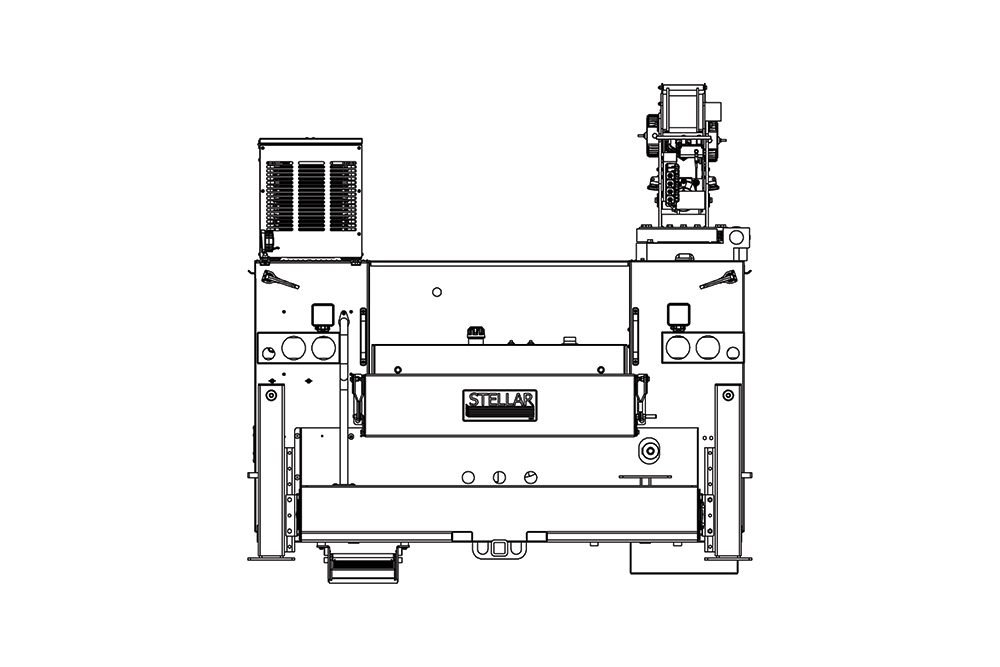

TMAX 30K-11 Aluminum Mechanic Body

Body Features
  • 11′ Aluminum Mechanic Body
  • Aluminum Side Packs
  • Aluminum Doors
  • Steel Crane Compartment
  • All compartments raised to 52″
  • 8″ Drop Well in CS1V for full size OXY Bottles
  • Flush front bulkhead, torsion box understructure with isolated crane compartment
  • Exterior DOT light package
  • Master-Lock system
  • 22″D X 52″H side packs
  • 133″ long, 50″ loadbed width, 21″ work bench bumper with thru-compartment
  • (6) recessed cargo tie-downs
  • (2) rear mounted grab handles
  • Dual-seal automotive type compartment weather seal
  • Rubber fenderettes
  • Overlapped doors on SS1V / CS1V
  • Overlapped doors on horizontal compartments
  • 12″ fold down aluminum tailgate (painted black)
  • 2 & 3-point stainless steel compression latches
  • Stainless steel “Billet Style” hinges
  • Spring loaded door stops
  • Weld on receiver hitch
  • Prime painted
  • Undercoated
  • Sliding Roof
  • 20 Gallon Air Tank
Compartment Storage
  • Streetside 1st Vertical in front of the divider:
    • Heavy Duty Aluminum Drawer set, 35.5″H x 34″W x 18″D, 3-3″, 3-5″, 1-7″ drawers (13716AX) w/LightBar
  • Streetside 1st Vertical to the rear of the divider:
    • Shelf with (3) dividers 17.63″W x 19.00″D (72773X)
  • Streetside Horizontal
    • Heavy Duty Aluminum Drawer set, 11″H x 48″W x 18″D, 3-3″ drawers (23378AX) w/LightBar
  • Streetside Rear
    • Shelf with (3) dividers 24.38″W x 19.00″D (72869X)
  • Curbside 1st Vertical
    • Divider kit with shelves (73116X) and Oxy-Acet 2-Bottle Holder (14013X)
  • Curbside 2nd Vertical
    • Shelf with (3) dividers 21″W x 19.00″D (72865X)
  • Curbside Horizontal
    • Heavy Duty Aluminum Drawer set, 11″H x 48″W x 18″D, 3-3″ drawers (23378AX) w/LightBar
  • Curbside Rear
    • 1/2″ x 50′ hose reel with roller guide (16337X) – exits rear of body
Body Mounted Options
  • Rock guard kit – Adhesive black
  • Grab Handle – mounts to rear side pack and bumper – easily accessible from ground
  • TMAX Aluminum Tailgate – 12″ Tall, painted black
  • Adjustable Boom Support
  • Roller Rest, painted black
Bumper Mounted Options
  • Vise mounting plate – Receiver work bench mount
  • Step, slide out for TMAX mechanics work bench bumper
  • Stabilizer Assembly – manual out/manual down, painted black
Light Options
  • LED Flood Light Kit – 4 lights – (1 near boom support, 1 SS behind compressor, 1 on each rear taillight box)
  • LED Compartment Light Kit
Paint & Finish
  • Paint 11’+ body Stellar White Paint, Axalta paint code 350407EX
  • Spray on bed liner for load bed walls and floor – Black
  • Spray on bed liner for work bench bumper – Black



5000 Electric Service Crane Details
  • Crane Rating : 25,000 ft-lb
  • Max Lifting Capacity: 5,000 lbs @ 5′
  • Maximum Horizontal Reach: 20′ from CL of crane
  • Maximum Vertical Lift: 21′ 3″ from crane base
  • Boom Elevation: -5° to +80°



DTM70 Air Compressor Details
  • Output Capacity: 70 cfm @ 100 psi
  • Max. pressure: 175 psi
  • PTO driven, direct transmission mounted, 100% duty cycle, VMAC oil-injected rotary screw
  • FLR system installed – 1 outlet for air hose (filter, lubricator, regulator)
